[Made in Japan, High-Rigidity Stainless Steel] Land Cruiser 70 (GDJ76W) Rear Carrier Multi Base Plate Bolt-On Design
¥28,800
SOLD OUT
こちらは英語ページになります。日本語ページでご覧になる方はこちらのURLよりご覧ください。↓
https://jemcuoio.base.shop/items/148055492
【Product Overview and Compatible Vehicles】
A rear multi-mount bracket specifically designed for the new Land Cruiser 70 (GDJ76W). It makes effective use of the space left after removing the spare tyre, functioning as a high-rigidity base mount that allows a variety of gear to be bolted on. *Compatibility with older and reissued models (HZJ series, GRJ series, 78 Prado) may be added once confirmed.
【Strength Verification and Design Philosophy by Domestic Testing Agencies】
Tested with a universal testing machine at a public institution, it has been proven to withstand a load of 240kg at the structurally most stressed point. When installed on the vehicle, the load is distributed by fixing at the top and bottom, providing even greater strength than measured. The practical load limit is set at "under 20kg". This is not the product’s maximum limit, but a restriction to ensure long-term preservation of your vehicle, considering up to 5G jolts during driving and to protect the rear door and hinges.
【Significant Weight Reduction for Improved Driving Performance】
Compared to the genuine spare tyre & bracket (approx. 40kg), this product weighs about 3kg. The substantial weight reduction brings positive changes to driving performance and fuel efficiency.
【High-Rigidity Stainless Steel Built to Last a Lifetime】
Uses 3.0mm thick high-rigidity stainless steel, which stands apart from standard steel products (compared to commonly used steel at 2.3mm thick: 1.7 times bending strength, 2.2 times less flex). Its outstanding corrosion resistance and rigidity thoroughly suppress flexing when loaded, even in harsh off-road conditions.
【"No.1 Matte Finish" for the Ultimate Paint Job】
Adopts a "No.1 matte finish" with fine surface texture, making paint less likely to peel even without sanding. Delivered unpainted, allowing for easy DIY chipping or colour-matched painting.
【Industrial Product Features and Cost Performance】
By deliberately omitting the polishing process, the material’s original rigidity is maintained, achieving high cost performance. This specification is ideal for owners who want to finish it to their own taste. *Scratches, metal beads from laser cutting, burn marks, and fine burrs generated during manufacturing are inevitable and do not affect strength or durability.
【16 Versatile Mounting Holes for Expansion】
In addition to RotopaX-specific holes, there are a total of 16 holes for M10, M8, M6, and elongated slots. Owners can freely customise the rear with rod holders, shovels, work lights, and more, depending on their ideas. *To mount RotopaX containers, a RotopaX pack mount is required separately.

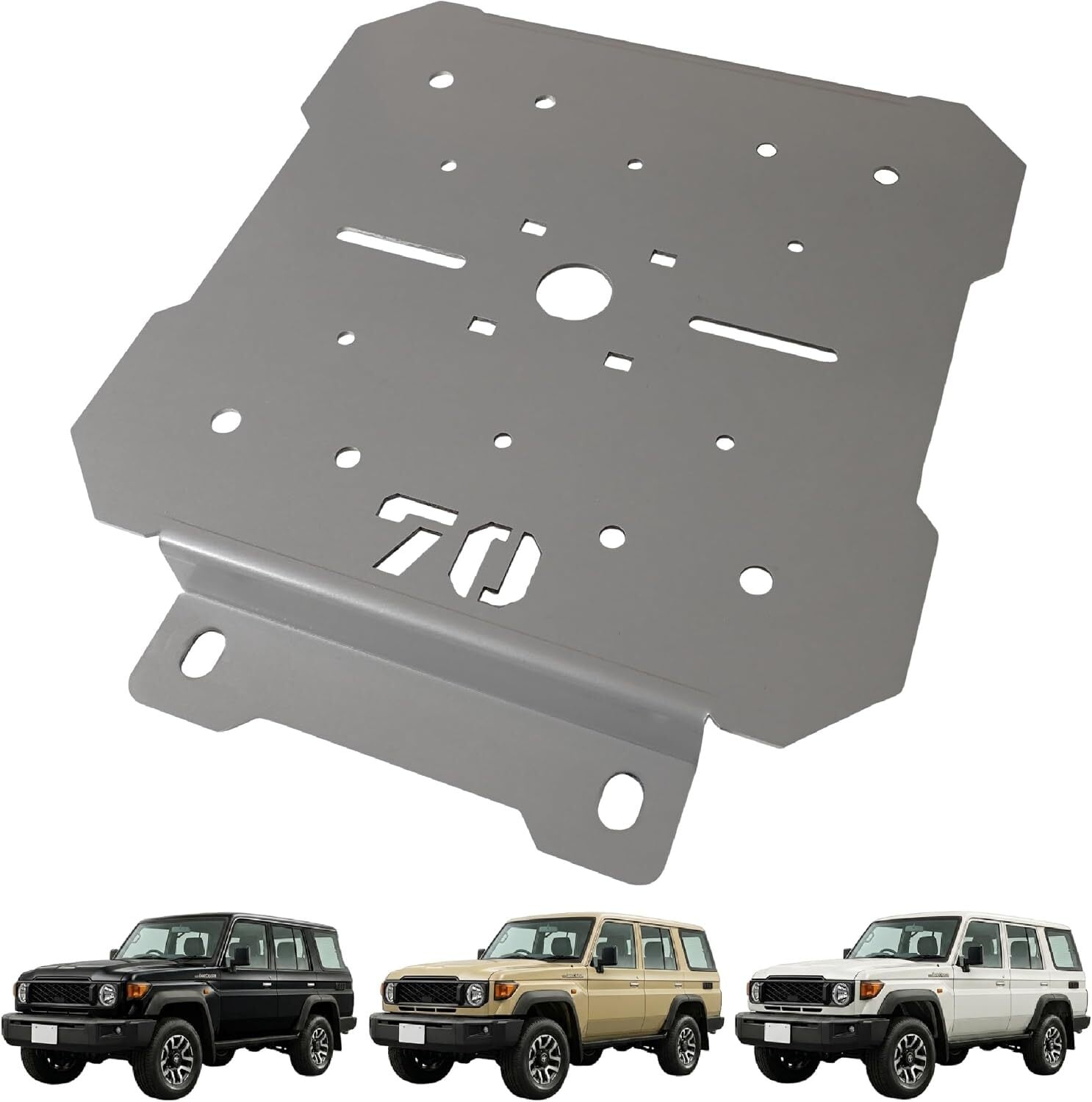

Rear Multi-Mount Bracket for the LandCruiser70
By making effective use of the space after removing the spare tyre, it functions as a high-rigidity base mount that allows for a variety of gear to be bolted on.
High-rigidity stainless steel & lightweight
We use high-rigidity stainless steel with a thickness of 3.0mm, which sets it apart from typical steel products. Thanks to its outstanding corrosion resistance and rigidity, it thoroughly suppresses flexing when loaded, even in harsh off-road conditions.
Additionally, testing with a universal testing machine at a public institution proved that it can withstand a load of 240kg at the structurally most stressed point.
On top of this high rigidity, the product is lightweight—about 3kg compared to the genuine spare tyre and bracket (around 40kg)—bringing positive changes to driving performance and fuel efficiency.

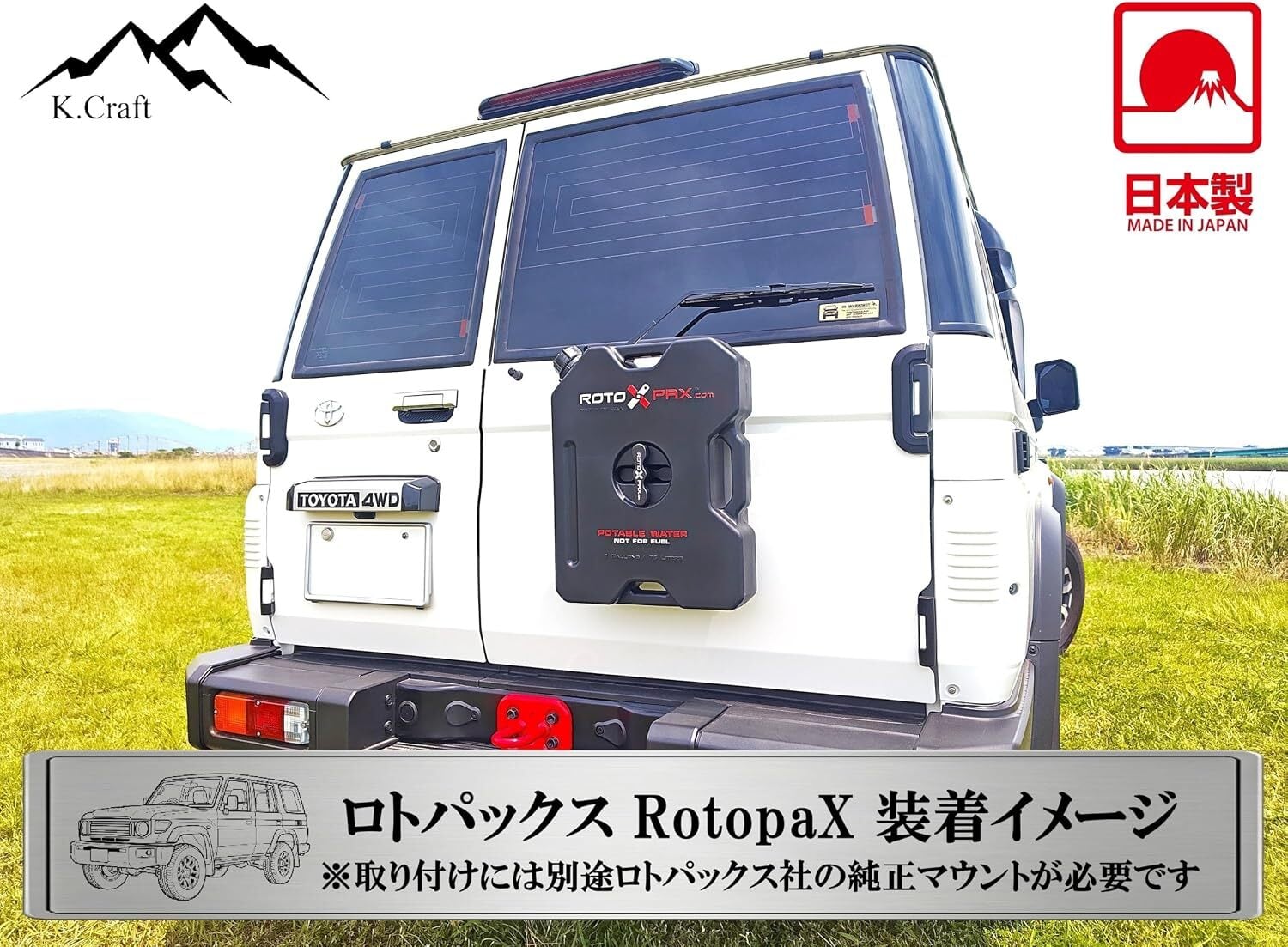

RotoPax mounting boltholes + M10,M8,M6 boltholes
Featuring a universal multi-hole pattern, it allows seamless mounting for RotopaX fuel/water packs and other overland gear on your 76 Wagon without sagging or rattling.
*Please note: To install a RotopaX container, a pack mount from RotopaX is required separately.
Easy-to-paint "Stainless Steel No.1 Matte Finish"
By opting for a "No.1 matte finish" with fine surface irregularities instead of a polished finish, paint is less likely to peel even without sanding (keying), making it easier to achieve a custom paint job.

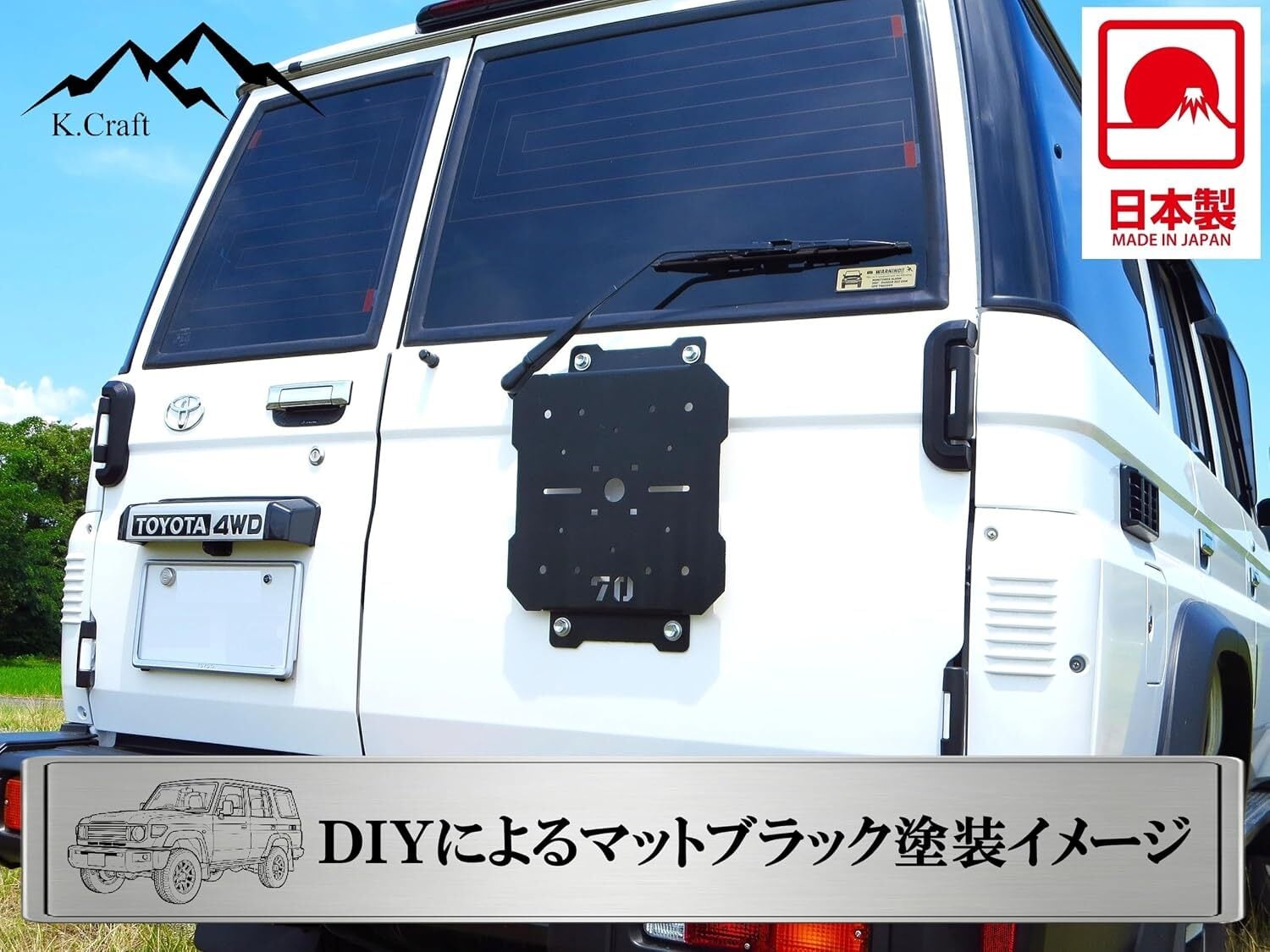

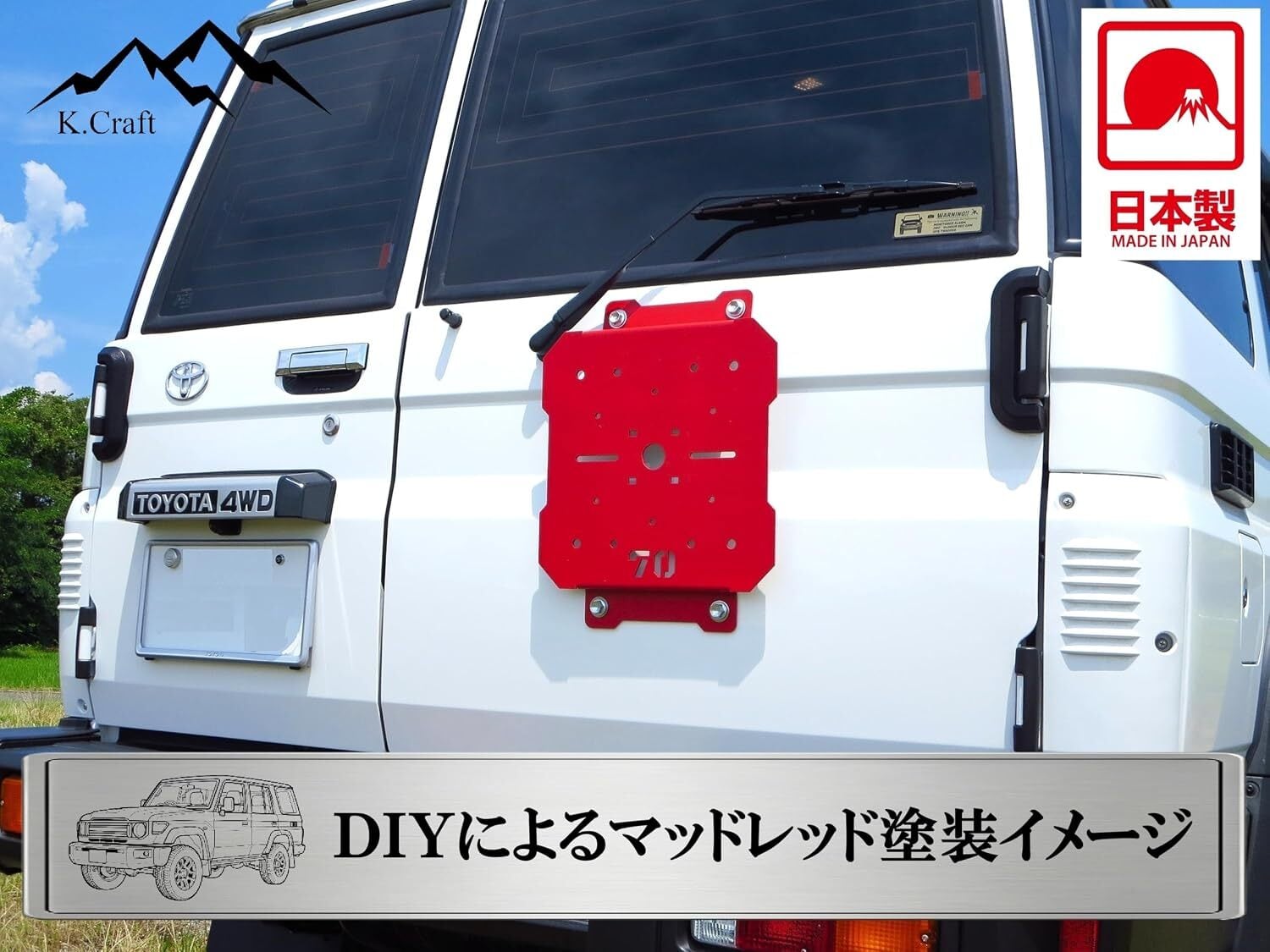

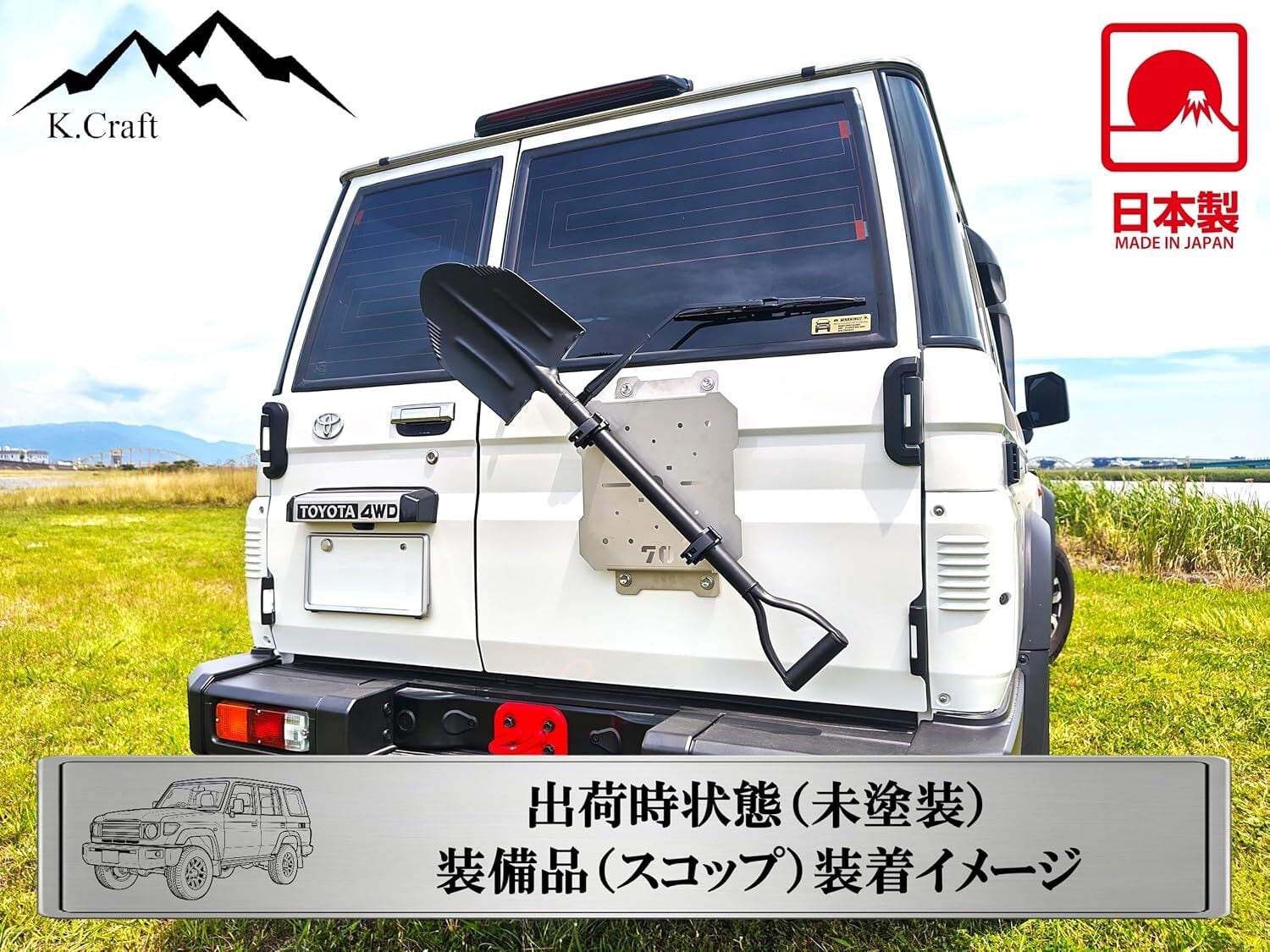

This will be delivered in an unpainted state, so you can finish it to your own liking—such as DIY chipping paint or body colour-matched paint—for a truly one-of-a-kind result.
Industrial product characteristics
By deliberately omitting the polishing process, we maintain the original rigidity of the material while achieving excellent cost performance. This specification is ideal for owners who want to finish it to their own liking.

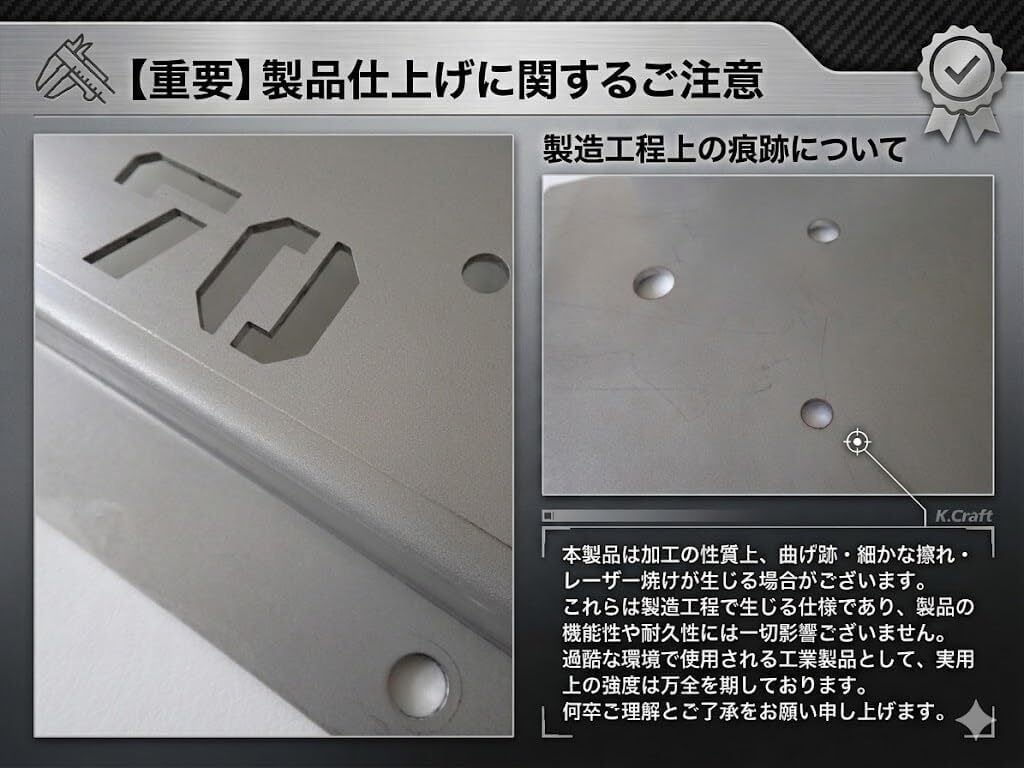

*Scratches from the manufacturing process, bead-like deposits of melted metal from laser cutting, discolouration, and fine protrusions (burrs) are inevitable phenomena during processing and do not affect strength or durability in any way.
-
